DIASIL CYLINDER & FORGED PISTONS
Diasil Cylinder:
The DiASil Cylinder was born from YAMAHA’s world-class aluminum die-casting technology. DiASil Cylinders are all aluminum cylinders made by YAMAHA’s proprietary aluminum die-casting technology. An aluminum alloy with 20% silicon content is used to create a very hard, reliable cylinder surface, making conventional iron sleeves obsolete. As a result, the entire cylinder can be made of aluminum, a better conductor of heat, which means the cylinder delivers better heat dissipation and less weight. (Aluminum’s heat conductivity is 3.1 times that of iron.) YZF-R15 is equipped with this all-aluminum cylinder called the DiASil Cylinder and a forged piston, the same type of piston used in YAMAHA’s supersport bikes.
FORGED PISTON:
The forged pistons made with Yamaha "controlled forging technology" have excellent strength characteristics that enable the design of a thinner, lighter piston with smaller reciprocating mass achieve higher rpm and performance as well as providing the greater reliability of the higher strength aluminum. For this reason they are used in YZF-R15 and many Yamaha motorcycles.

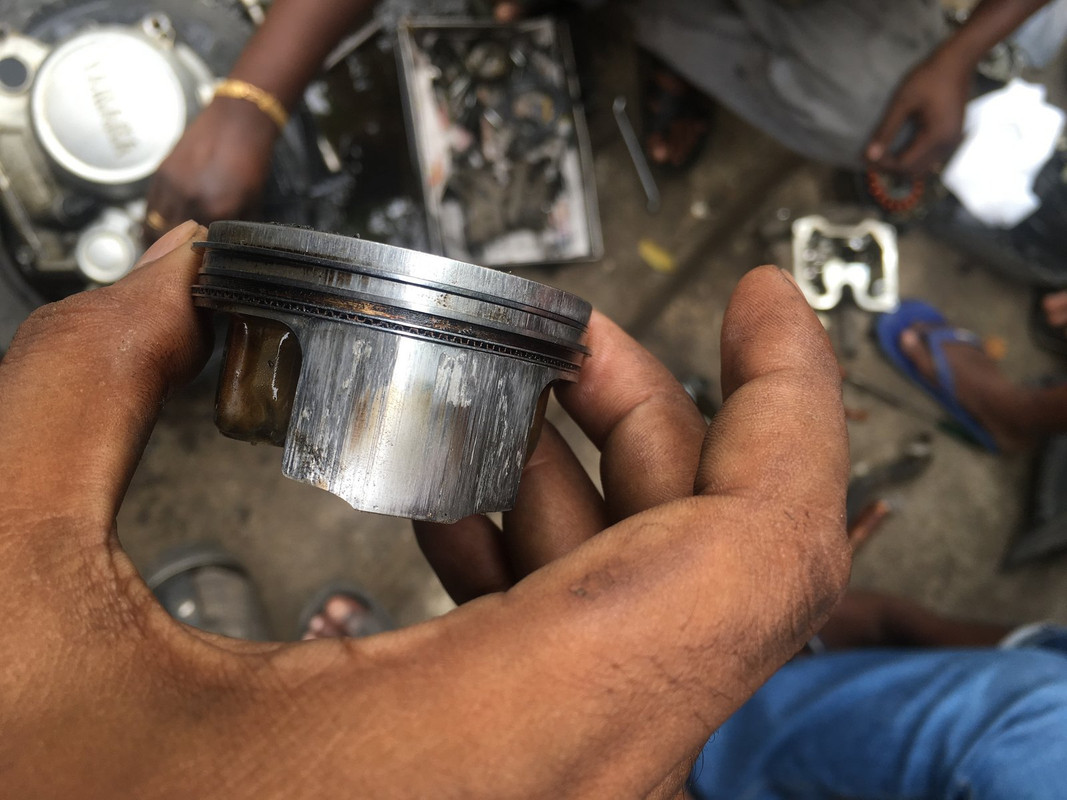

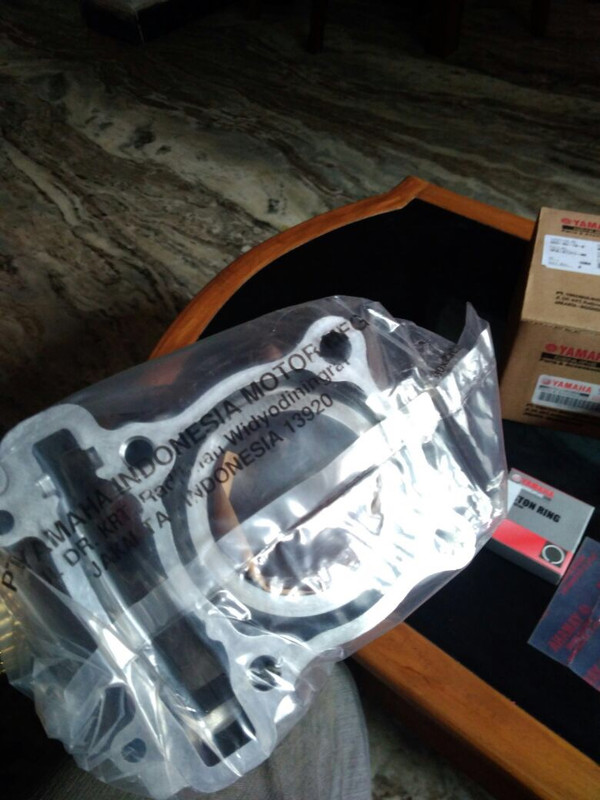

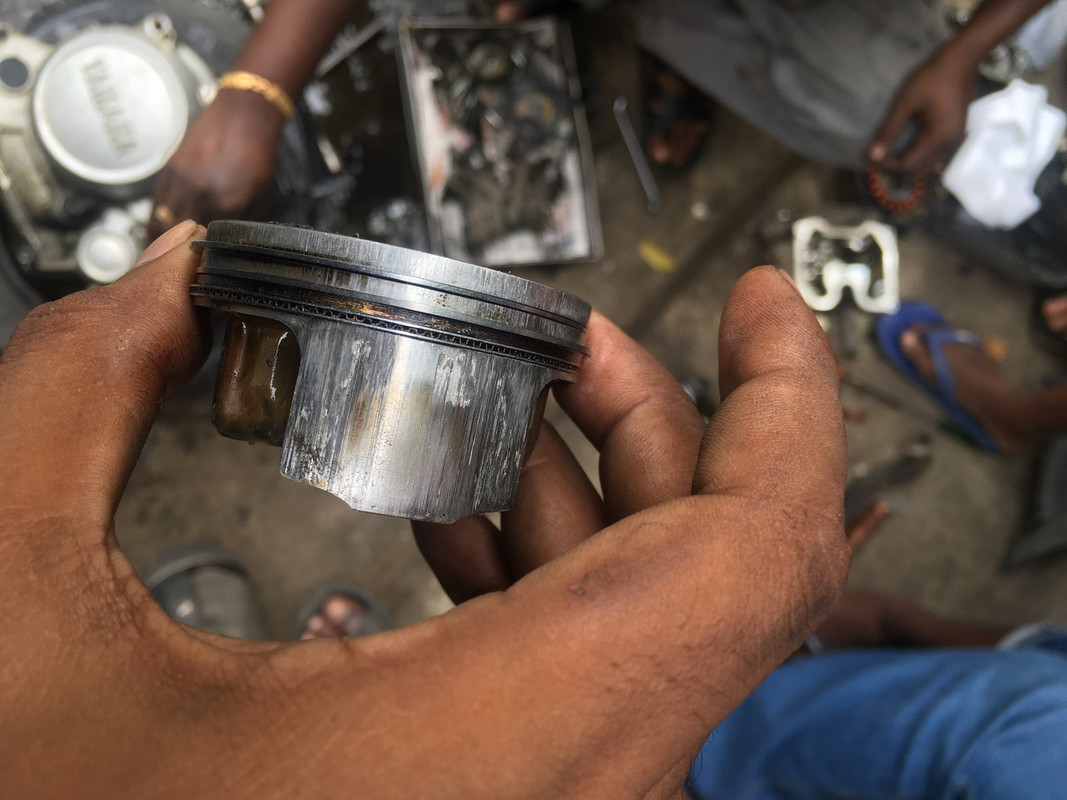

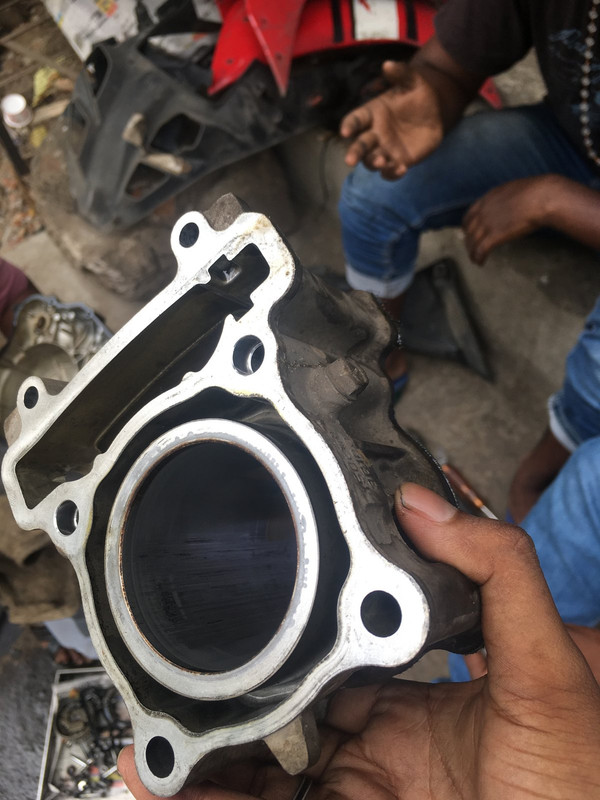

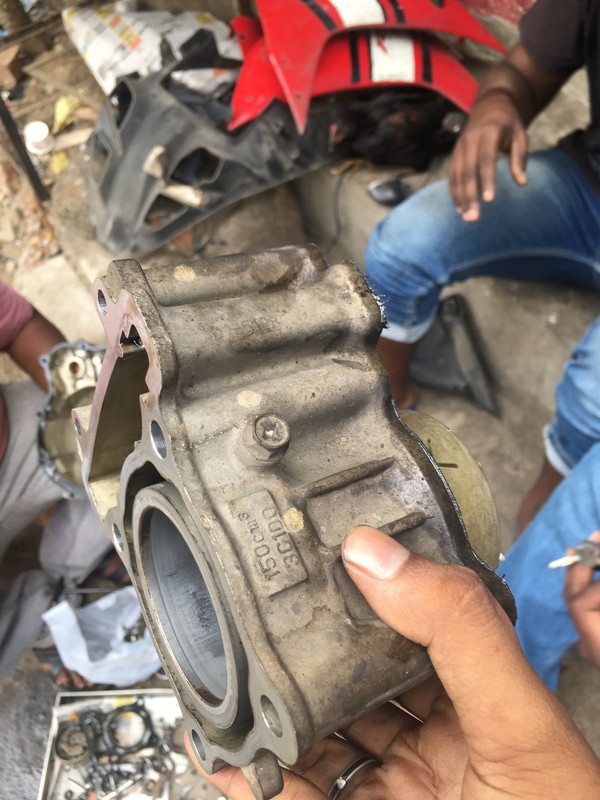

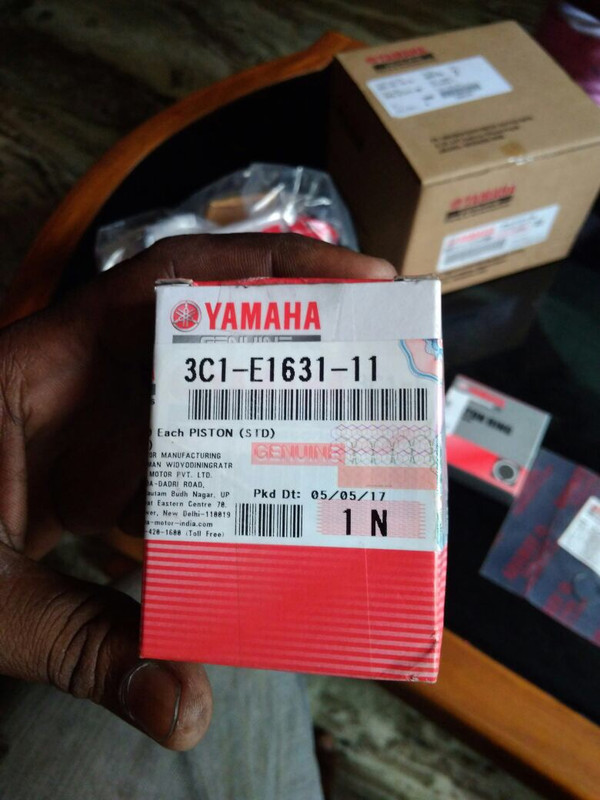

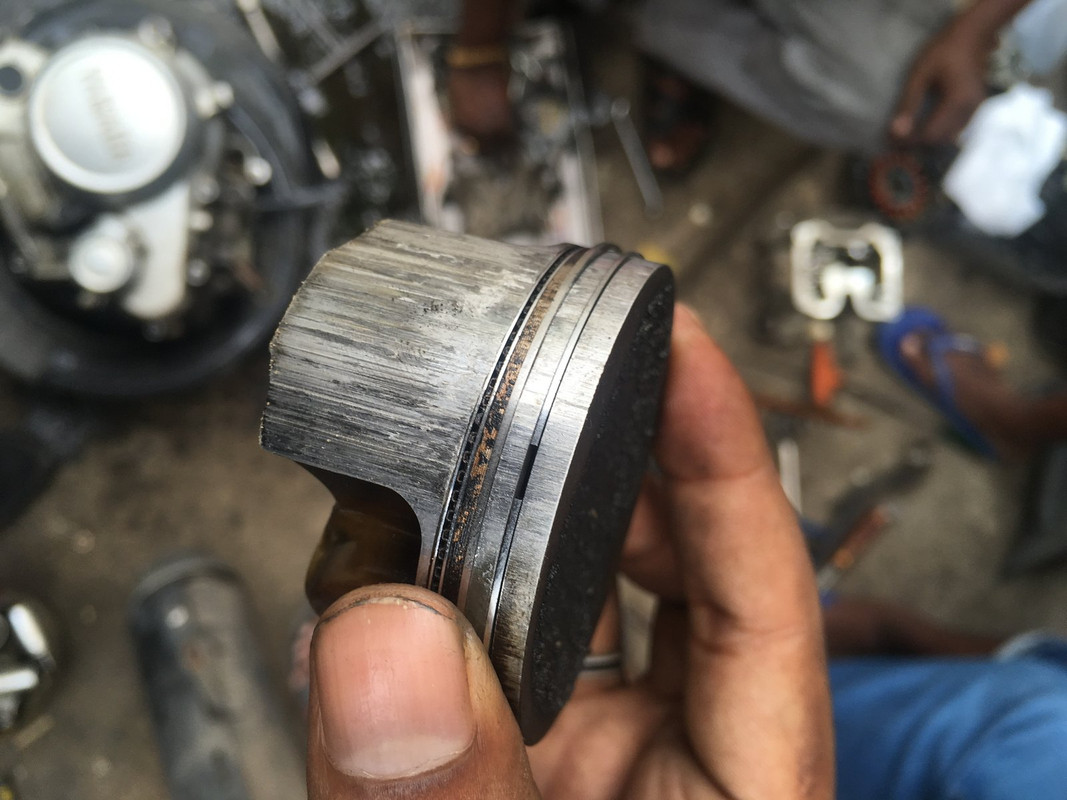

NOTE:IMAGES SHOWN HERE ARE ENGINE SEIZED VEHICLE IMAGES .JUST TO SHOW HOW THESE PARTS LOOK
The DiASil Cylinder was born from YAMAHA’s world-class aluminum die-casting technology. DiASil Cylinders are all aluminum cylinders made by YAMAHA’s proprietary aluminum die-casting technology. An aluminum alloy with 20% silicon content is used to create a very hard, reliable cylinder surface, making conventional iron sleeves obsolete. As a result, the entire cylinder can be made of aluminum, a better conductor of heat, which means the cylinder delivers better heat dissipation and less weight. (Aluminum’s heat conductivity is 3.1 times that of iron.) YZF-R15 is equipped with this all-aluminum cylinder called the DiASil Cylinder and a forged piston, the same type of piston used in YAMAHA’s supersport bikes.
FORGED PISTON:
The forged pistons made with Yamaha "controlled forging technology" have excellent strength characteristics that enable the design of a thinner, lighter piston with smaller reciprocating mass achieve higher rpm and performance as well as providing the greater reliability of the higher strength aluminum. For this reason they are used in YZF-R15 and many Yamaha motorcycles.
NOTE:IMAGES SHOWN HERE ARE ENGINE SEIZED VEHICLE IMAGES .JUST TO SHOW HOW THESE PARTS LOOK
